ESXi环境下的黑群晖DSM7.1安装

博主： jyhuang158
发布时间：2022 年 10 月 14 日
2990 次浏览
暂无评论
4163字数
分类：技术

镜像引导和安装文件还有工具在此下载链接：<a class="no-external-link" href="https://pan.baidu.com/s/1GjM47Ot4Vt_SYwshLu_VCw?pwd=m2ia" target="_blank">https://pan.baidu.com/s/1GjM47Ot4Vt_SYwshLu_VCw?pwd=m2ia</a> 提取码：m2ia

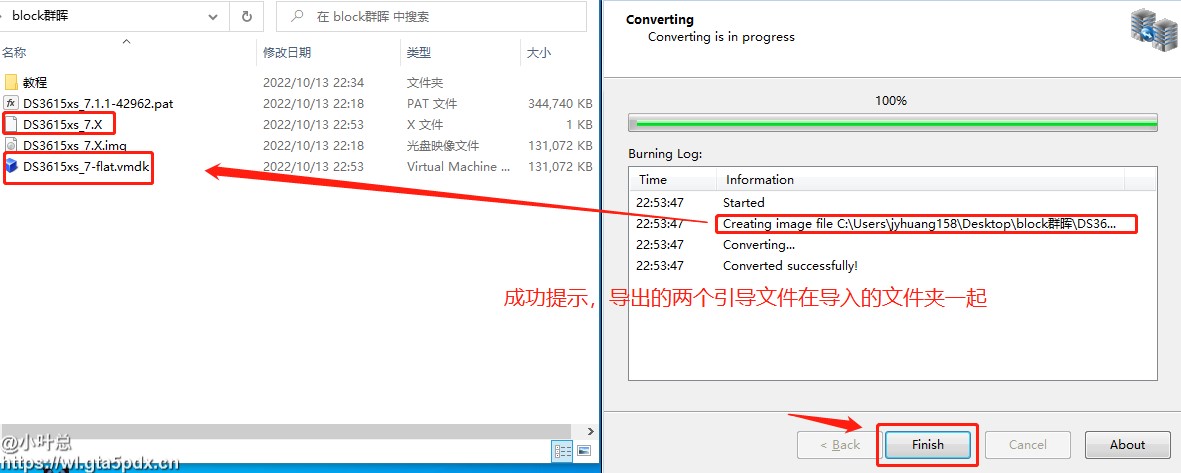

</div><h2>镜像转换</h2>本人使用Esxi搭建黑群晖环境，需要将引导镜像转换成VMDK文件，工具使用StarWindConverter，步骤如下：<img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3748868588.jpg" alt="打开StarWindConverter工具" title="打开StarWindConverter工具" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/615298326.jpg" alt="选择引导镜像" title="选择引导镜像" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3150736322.jpg" alt="选择转换格式" title="选择转换格式" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3479756522.jpg" alt="选择存放位置" title="选择存放位置" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/385286339.jpg" alt="完成转换" title="完成转换" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/2404558696.jpg" alt="修改后缀" title="修改后缀" style=""><h2>上传镜像</h2><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/1019640550.jpg" alt="上传镜像" title="上传镜像" style="">生成2个文件，都要传到Esxi的存储中，上传完成后只显示一个。<img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/1413679158.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/198799261.jpg" alt="" title="" style=""><h2>修改网卡配置</h2><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/1671276099.jpg" alt="修改虚拟交换机配置" title="修改虚拟交换机配置" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/2883431399.jpg" alt="更改安全模式" title="更改安全模式" style=""><h2>创建虚拟机</h2><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3124725973.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3840420358.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3813256411.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/483573853.jpg" alt="" title="" style=""><h3>引导盘设置</h3><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/2887122915.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/2525720729.jpg" alt="添加引导磁盘" title="添加引导磁盘" style="">删除多余的<a class="no-external-link" href="https://www.smzdm.com/fenlei/guangqu/" target="_blank">光驱</a>、SCSI控制器，添加之前上传的引导文件，挂载在SATA控制器(0:0)。<img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/1864955616.jpg" alt="删除多余光驱" title="删除多余光驱" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/1403770021.jpg" alt="引导盘挂载" title="引导盘挂载" style=""><h3>网卡配置</h3>必须使用E1000e类型，否则启动后找不到IP。<img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/343561726.jpg" alt="修改网卡配置" title="修改网卡配置" style=""><h3>存储盘设置</h3><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/718353821.jpg" alt="请输入图片描述" title="请输入图片描述" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3042096962.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3371551519.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/1003198328.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3371551519.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/108327273.jpg" alt="引导修改" title="引导修改" style=""><h3>确认信息</h3><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/498400985.jpg" alt="" title="" style=""><h2>打开虚拟机</h2><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3379618485.jpg" alt="" title="" style="">选择第二个SATA引导选项<img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/2472795373.jpg" alt="" title="" style=""><h2>初始化流程</h2><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/2315149925.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/434676662.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/2874620671.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/4220553856.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3794369368.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/220464582.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/857487469.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3574460038.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/4057810200.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/2795690581.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/377277556.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/673282580.jpg" alt="" title="" style=""><h2>新建存储空间</h2><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3715606776.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/4254259749.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/3362602526.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/1989863746.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/1551518644.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/2794909194.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/2153724722.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/1132624884.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/1874295350.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/1842957253.jpg" alt="" title="" style=""><img src="https://cdn.gta5pdx.cn/usr/uploads/2022/10/2256962318.jpg" alt="" title="" style=""><div class="tip inlineBlock share">
